SD4781P EQ USB-C® & USB-A Dual 4K Docking Station

SKU: K33603AP
Large Product Image 1
SKU: K33603AP

Default message

Request a Quote
Or Call (1300 278 546)

Features

Universal Compatibility

Supports USB-C® and legacy USB-A laptops running Windows 7 or above, macOS 10.14 or above and Chrome OS 44 or above.

Sustainability focused

The plastic in this product contains 53% post-consumer recycled (PCR) content. *Does not include the cable, power supply or power cords

Secure Screw Lock Connection

Host USB-C cable includes a screw lock to ensure the cable remains in place even in busy office environments.

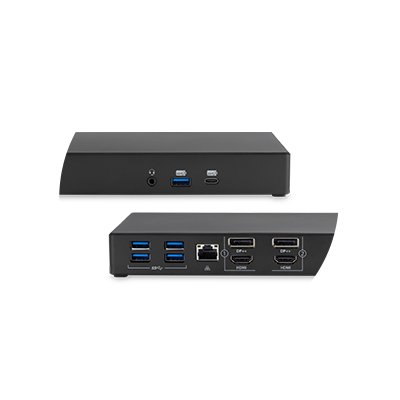

Multiple Ports

Supports USB-C® and delivers speeds up to 10Gbps via 1 x USB-C® port and 5 x USB-A ports. Also includes 2 x HDMI® 2.0 ports, 2 x DP++ 1.2 ports, Gigabit Ethernet port and an audio combo jack.

Dual 4K Video via HDMI® 2.0 and DP++ 1.2

Four video ports allow you to select between HDMI® 2.0 and DP++ 1.2 without the need for cumbersome adapters. Also enables dual screen supports for M1/M2/M3 MacBooks.

Up to 100W Power Delivery

Delivers power to laptop, docking station and connected accessories. Supports up to 100W for USB-C® Alt Mode laptops. USB-A laptops require an alternative source of power, sold separately.

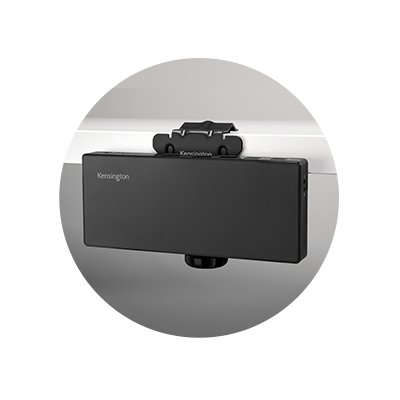

Zero-Footprint Mounting Option and Security Cable Lock Slots

Maximise desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.

Industry-Leading Quality, Warranty and Support

Built with quality in mind, we stand behind the SD4781P USB-C® and USB-A Dual 4K Docking Station with a three-year limited warranty.

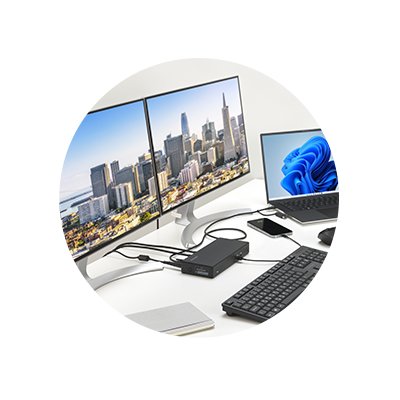

Ideal for professionals requiring a single docking solution for a mixed estate of devices and organisations putting sustainability at the forefront, the SD4781P USB-C® & USB-A Dual 4K Docking Station is a versatile dock that supports the latest USB-C® and legacy USB-A* laptops - including dual monitor support for MacBook M1/M2/M3 laptops. SD4781P’s outer case is composed of 53% post-consumer recycled content (PCR), aimed at reducing our environmental impact. The docking station supports up to 2 external Ultra HD monitors (4K @ 60Hz), with the ability to select between HDMI® 2.0 and DP++ 1.2 connections. A secure screw lock USB-C cable ensures the cable remains in place even in busy office environments. Together with data transfer speeds up to 10Gbps via 6 x USB ports and up to 100W Power Delivery, the SD4781P EQ USB-C® & USB-A Dual 4K Docking Station is the perfect solution for a wide range of different workstation setups. * USB-A devices require an alternative power source, sold separately.

  • Supports USB-C® and legacy USB-A laptops running Windows 7 or above, macOS 10.14 or above, Chrome OS 44 or above.
  • The plastic in this product contains 53% post-consumer recycled (PCR) content. *Does not include the cable, power supply or power cords
  • Secure screw lock keeps the USB-C® host cable in place even in busy office and hot-desking environments
  • Dual 4K Video via HDMI® 2.0 and DP++ 1.2
  • Up to 100W Power Delivery to compatible laptops while powering connected accessories
  • Up to 10Gbps data transfer speeds via 1 x USB-C® port and 5 x USB-A ports
  • Accommodates Zero-Footprint Mounting and Kensington Security Lock
  • Free Kensington Dockworks™ software
  • 3-year limited warranty

Product Specifications

Connection technology:
USB-C or USB-A (DisplayLink)
Driverless:
No
Number of Screen Outputs:
2
Video ports:
DisplayPort++, HDMI
Maximum resolution :
4K
Power delivery:
100W
Operating system(s):
Chrome OS, macOS, Windows
Number of USB ports:
6
USB fast charging:
Yes
TAA Compliant:
Docking station family:
The Task Master
DockWorks:
Yes (for Windows only)
Best For:
USB-C or USB-A Laptops & Ultrabooks and Monitors that support up to 4K
Compatibility:
Chrome OS 44 or above, macOS 10.14 or above, Windows 7 or above
Features:
EQ
USB-A ports:
5x: (1) USB-A 3.2 Gen2 (front) with 5V/2.4A fast-charging & (4) USB-A 3.2 Gen1 (back) supporting 5V/0.9A
USB-C ports:
1x USB-C 3.2 Gen2 (front) with 5V/3A
Audio:
1 x 3.5mm Combo Microphone & Headphone Port (front)
Data transfer speeds:
Supports up to 10Gbps data transfer speed
Ethernet Speed (Mbps):
10, 100, 1000 Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches, and the hardware and firmware performance of the host computer.
Maximum resolution supported:
Single or Dual Monitors: 4096 x 2160 @ 60Hz
Period of Warranty:
Limited 3-year warranty
Plug & play:
DisplayLink driver installation required
Security slot compatibility:
Kensington Nano Security Slot, Kensington Security Slot
System requirements:
USB-C host device must support Power Delivery. Power Delivery is not supported on USB-A host devices without the use of the optional 60W power splitter (K38310)
USB-C Power Delivery:
Supports USB-C PD 3.0 (100W of laptop charging)
Video output:
2 x DisplayPort 1.2++, 2 x HDMI v2.0
4K support:
Yes
Device Compatibility:
MacBook M-Series Base Chipset
