The power of Thunderbolt™ 5 on your desk.

A: Yes, while the SD5000T5 supports many laptops, it is recommended to use a Thunderbolt™ 5 laptop to get the full capability out of this Thunderbolt™ 5 dock, which supports up to triple 4K @ 144Hz (80Gbps bidirectional data transfer speed) and 120Gbps for intensive video usage. If used with Thunderbolt™ 4 and USB4® devices, it will support up to 40Gbps bandwidth with dual 4K @ 60Hz. For USB-C® laptops with external display capabilities, it will support a single 4K display.

A: Your laptop must have an Intel-certified Thunderbolt™ 5 port, support DisplayPort™ 2.1 for maximum resolution, and support USB-C® PD 3.1 EPR (Extended Power Range) with 140W (28V/5A) for laptop charging. Note that some laptops may claim to support PD 3.1 but state that they only support up to 100W (20V/5A) for laptop charging.

A: No, MacBook M1/M2 base chipset models only support a single external display. However, M1/M2/M3 Pro, M1/M2/M3 Max, and M1/M2 Ultra chipset models support dual displays, and M3 base chipset models can support up to dual displays when the lid is closed.

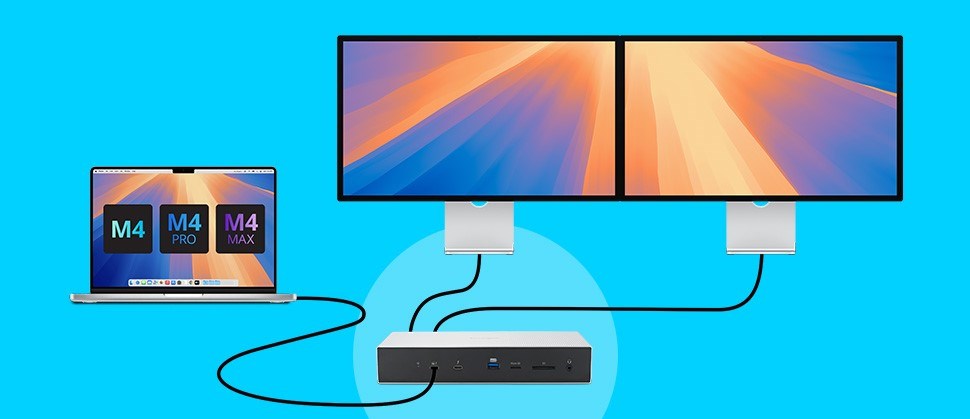

A: No, MacBook models with M1/M2/M3 Pro and M1/M2/M3 Max chipsets support up to dual 6K @ 60Hz displays, but not triple displays.

A: The SD5000T5 is compatible with Thunderbolt™ 5 laptops running Windows 11 (version 23H2 and later). Windows 10 does not support Thunderbolt™ 5 features. If you have a Windows 10 laptop, the Thunderbolt™ 5 ports will revert to MFDP (two lanes of DisplayPort + USB 3) functionality, meaning they will function as USB-C® docks with data and display capability. Therefore, it is highly recommended not to use this dock with Windows 10 but to upgrade to Windows 11 (version 23H2 and later).

A: Based on our testing, the SD5000T5 dock is compatible with macOS 14.5 and later. However, Apple has not yet announced plans to support Thunderbolt™ 5 docks. For more information, please contact Apple support.

A: When used with a Thunderbolt™ 5 laptop, the SD5000T5 supports up to triple 4K @ 144Hz, dual 8K @ 60Hz, or single 8K @ 60Hz or 1080p @ 540Hz. For MacBook models with M1/M2/M3 Pro and Max chipsets, it supports up to dual 6K @ 60Hz.

A: Yes, it supports USB-C® PD 3.1 (up to 140W of laptop charging) for laptops with the USB-C® PD 3.1 EPR (Extended Power Range) standard for 140W charging.

A: Yes, the SD5000T5 dock supports daisy-chaining multiple Thunderbolt™ 5 devices, allowing you to connect additional peripherals and expand your workspace.

A: For professional gamers with laptops needing up to 140W for gaming, follow device guidelines to avoid throttling and to ensure stable power, and avoid connecting high-power devices (up to 60W) during gameplay. Casual gamers with laptops needing up to 100W can allocate power freely, charging other devices, like tablets, with up to 60W during gameplay.

A: No, the SD5000T5 is a Thunderbolt™ 5 dock and needs to be used with a Thunderbolt™ 5 cable to get the full bandwidth. We can only guarantee that the Kensington cable shipped with the dock will work. Since USB cables can vary greatly between different manufacturers, we recommend users contact Kensington for replacements if needed.

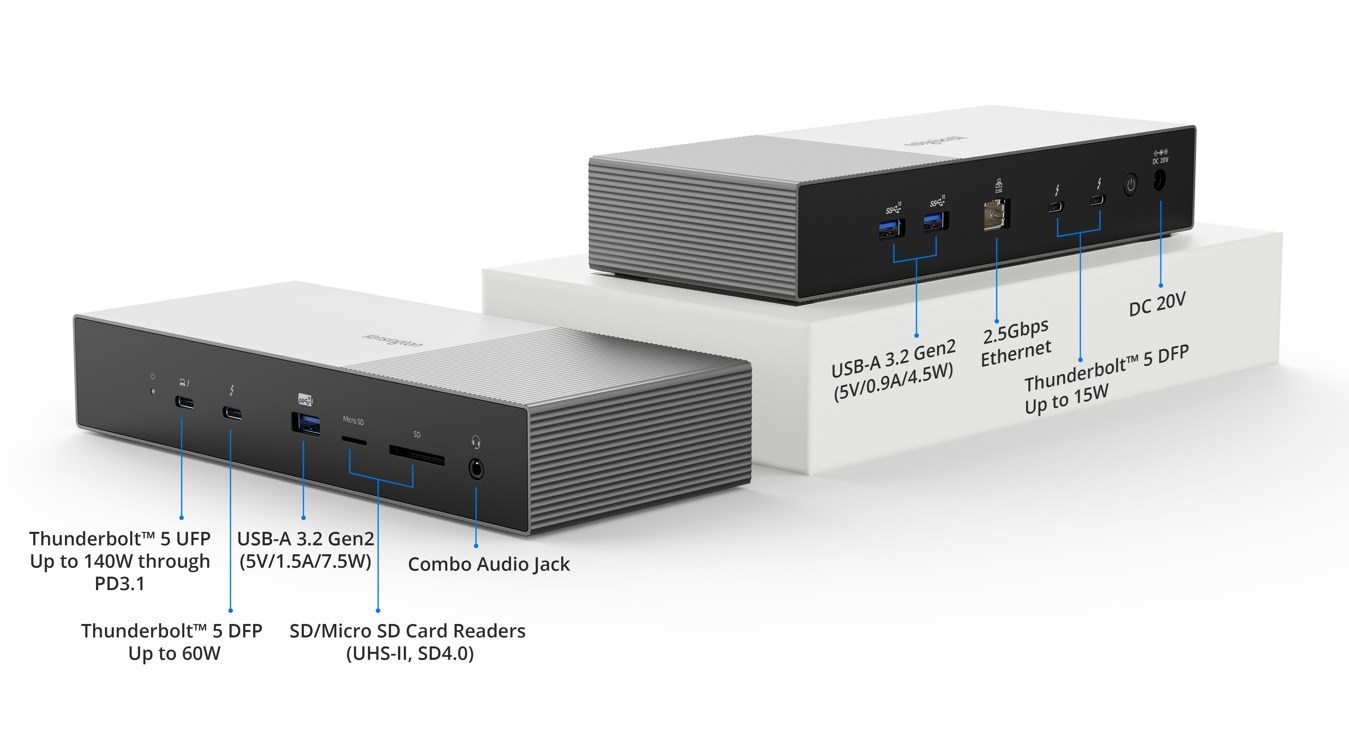

A: Yes, the SD5000T5 supports fast charging with 3 high power ports. It has one Thunderbolt™ 5 port supporting up to 60W and one USB-A 3.2 port supporting up to 7.5W on the front, as well as two Thunderbolt™ 5 ports on the back, supporting 15W each.

A: Yes, the SD5000T5 supports off-host charging, so you can still charge your connected devices even when the laptop is not connected.

A: The SD5000T5 dock comes with a 3-year limited warranty. For more details on warranty coverage, please visit https://www.kensington.com/warranty/.

A: Yes, the SD5000T5 offers security lock slots compatible with a Kensington cable lock (K65020WW or K65021WW), sold separately.

A: No, the SD5000T5 is designed to support Thunderbolt™ 5 laptops.

A: If your device does not support Power Deliver (PD), the SD5000T5 will not be able to charge your device. However, data and video functionality will still be supported.

A: Yes, mounting bracket sold separately (K34050WW).

A: Yes, please visit https://www.kensington.com/software/dockworks/ to learn more about the benefits of Dockworks™.

A: Yes, the SD5000T dock comes with a 2.5Gbps Ethernet port, providing a fast connection for network applications.

A: Yes, the SD5000T5 dock includes a 3.5mm combination audio jack, allowing you to connect headphones, external speakers, or a microphone.
